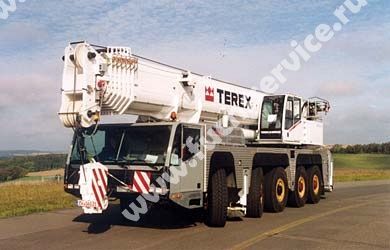

Terex AC 200-1

Maximum lifting capacity / radius: 200 t / 3 m (240 US-tons / 9.8ft)
Main boom: 12,4 - 67,8 m (41 - 222ft)
Main boom extension: 9,2 - 33 m (30 - 108ft)
Maximum system length: 67,8 + 33 = 100,8 m (222 + 108 = 330ft)
Overall length: 14,7 m (48.2ft)
Carrier length: 12,58 m (41.2ft)
Turning radius over boom head: 11,4 m (37.4ft)
Carrier engine: DaimlerChrysler OM 502 LA (380 kW / 516 PS / hp)
Superstructure engine: DaimlerChrysler OM 906 LA (170 kW / 231 PS / hp)
Maximum travel speed: 85 km/h
Drive / steer: 10 x 8 x 8
Tyres: 14.00 (16.00 / 17.5 / 20.5)
Maximum gradeability: > 70 %
Maximum counterweight: 69 t (152,000lbs)
