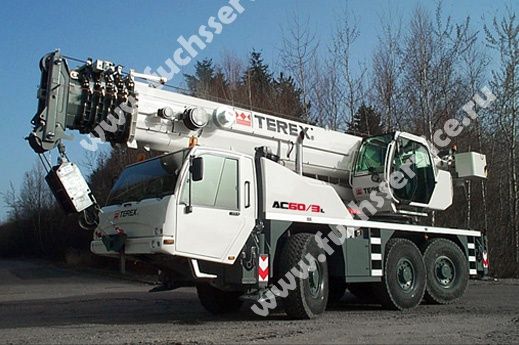

Terex AC 60/3 L

Maximum lifting capacity / radius: 60 t / 3 m (66 US-tons / 8.5ft)
Main boom: 9,9 - 44 m (32 - 144ft)
Main boom extension: 8 / 15 m (26 / 49ft)
Maximum system length: 44 + 15 = 59 m (144 + 49 = 193ft)
Overall length: 11,24 m (36.8ft)
Carrier length: 9,36 m (30.7ft)
Turning radius over boom head: 8,8 / 8,7 m (28.8 / 28.5ft)
Carrier engine: DaimlerChrysler OM 501 LA (260 kW / 353 PS / hp)
Maximum travel speed: 85 km/h
Drive / steer: 6 x 6 x 6
Tyres: 16.00 (14.00 / 20.5)
Maximum gradeability: > 55 %
Maximum counterweight: 11,6 t (25,600lbs)
