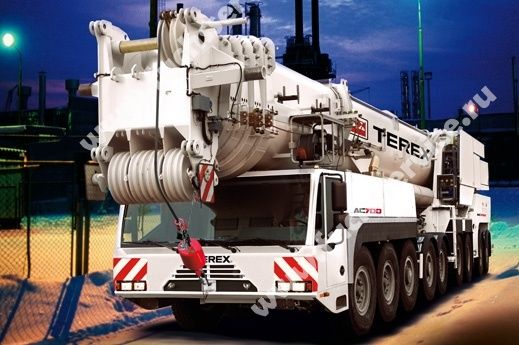

Terex AC 700

Maximum lifting capacity / radius: 700 t / 3 m (800 US-tons / 9.8ft)
Main boom: 15,5 - 60 m (51 - 197ft)
Main boom extension: 6 - 36 m (20 - 118ft), mit / ohne SSL (with / without SSL)
Maximum system length: 45,5 + 96 + 4 = 145,5 m (149 + 315 + 13 = 477ft), Wippbarer Hilfsausleger / luffing fly jib
Fixed fly jib: 20 - 50 m (66 - 164ft), mit / ohne SSL (with / without SSL)
Luffing fly jib: 24 - 96 m (79 - 315ft), mit / ohne SSL (with / without SSL)
Overall length: 20,6 m (67.6ft)
Carrier length: 18,64 m (61ft)
Turning radius over boom head: 16,5 m (54ft)
Carrier engine: DaimlerChrysler OM 502 LA (420 kW / 571 PS / hp)
Superstructure engine: DaimlerChrysler OM 906 LA (205 kW / 279 PS / hp)
Maximum travel speed: 63 km/h
Drive / steer: 18 x 8 x 16
Tyres: 14.00
Maximum gradeability: 33 %
Maximum counterweight: 140 / 160 t (309,000 / 352,000lbs)
